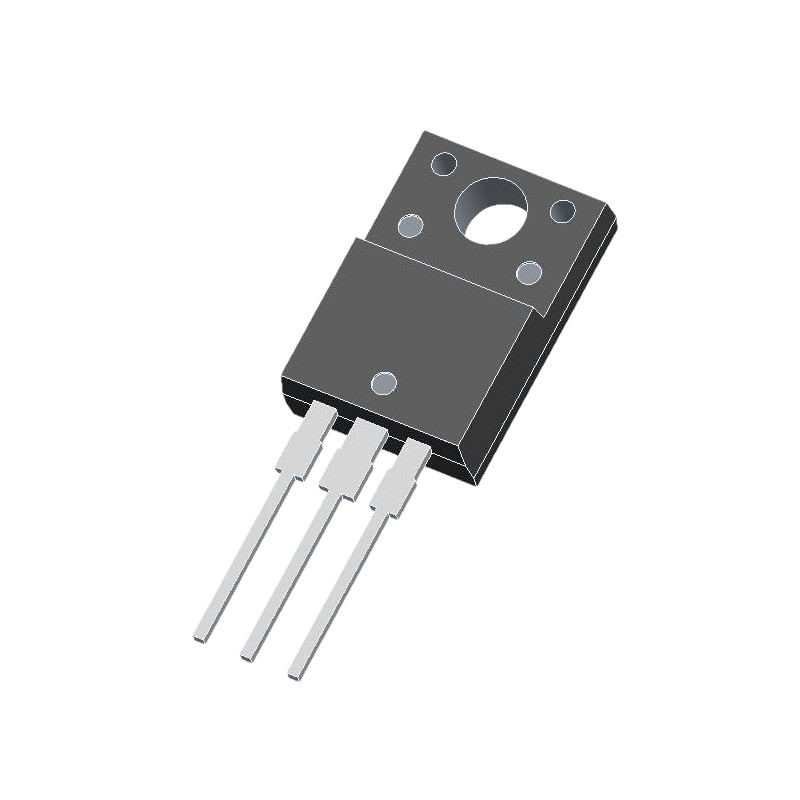

2SK2651 N-Channel MOSFET Transistor TO-220F

Description

Features: High Speed Switching Low On-Resistance No Secondary Breakdown Low Driving Power High Voltage– VGSs = ± 30V Guarantee Repetitive Avalanche Rated Applications: Switching Regulators UPS DC-DC converters General Purpose Power Amplifier Characteristics Structure N-Channel Maximum drain-source voltage Vds 900V Maximum drain-source current at 25 C Id 6A Maximum gate-source voltage Vgs max ±30V Channel resistance in open state (Rds)on 2.5 Ohm Maximum dissipated power P max. 50W Forward Transconductance g(fs) 4S Package to-220fp Gate threshold voltage 4.5V 2SK2651 Datasheet
