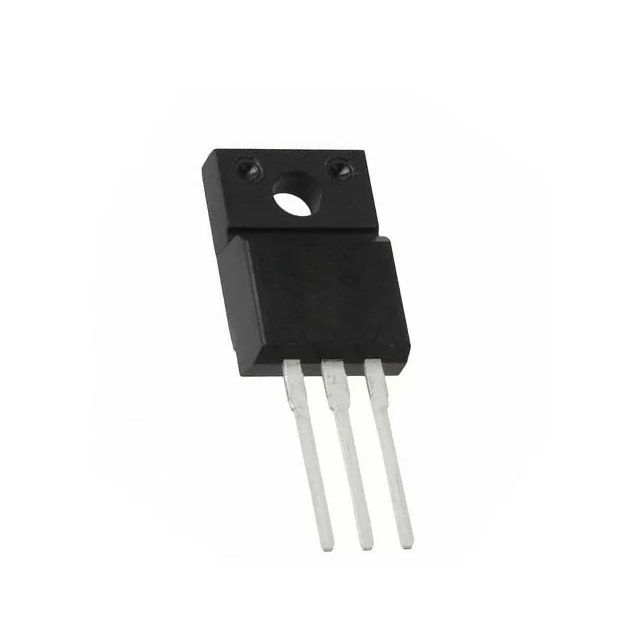

2SA1720 PNP Bipolar Transistor TO-220F (10A, 100V)

Description

Product Attributes TYPE DESCRIPTION Category Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors Transistor Type PNP – Darlington Current – Collector (Ic) 10A Voltage – Collector Emitter Breakdown (Max) 100 V Vce Saturation (Max) @ Ib, Ic 1.5V @ 5mA, 5A Current – Collector Cutoff (Max) 10µA (ICBO) DC Current Gain (hFE) (Min) @ Ic, Vce 4000 @ 5A, 2V Power – Max T C = 25°C 25 W T A = 25°C 2 W Frequency – Transition 100MHz Operating Temperature 150°C (TJ) Mounting Type Through Hole Supplier Device Package TO-220F 2SA1720 Datasheet
