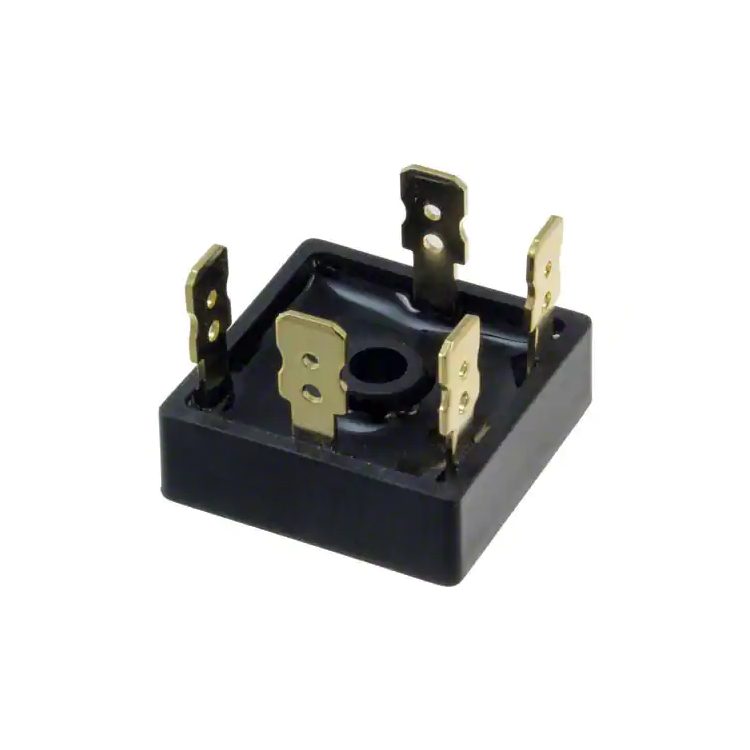

Bridge Rectifier 35A 1600V 3-Phase 5 Pin

Description

Features High surge current capability Easy chassis mounting High voltage ratings up to 1600V Minimum Lot-to-Lot variations for robust device performance and reliable operation Applications Battery charges DC motor drives Various rectifiers ABSOLUTE MAXIMUM RATINGS SYMBOL PARAMETER VALUE UNIT VRRM Repetitive Peak Reverse Voltage 1600 V IO Average Rectified Output Current @60Hz sine wave, R-load, With heatsink Tc=55℃ 35 A IFSM Surge(Non-repetitive)Forward Current @60HZ Half- sine Wave, 1 cycle, Ta=25℃ 425 A I2 t Current Squared Time @1ms≤t<8.3ms Tj=25℃, Rating of per diode 750 A2S TJ Junction Temperature -55~150 ℃ Tstg Storage Temperature Range -55~150 ℃ Vdis Dielectric Strength, Terminals to case, AC 1 minute 2.5 KV ELECTRICAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS MAX UNIT VFM Forward Voltage drop IFM= 17.5A 1.2 V IRRM Repetitive Peak Reverse Current VR＝VRRM 10 uA 3516 Datasheet
