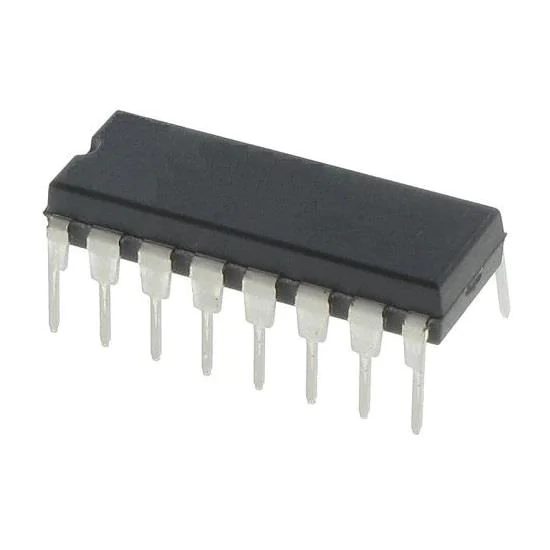

MC14521BCP 24-Stage Frequency Divider DIP-16 IC

Description

24-Stage Frequency Divider The MC14521B consists of a chain of 24 flip−flops with an input circuit that allows three modes of operation. The input will function as a crystal oscillator, an RC oscillator, or as an input buffer for an external oscillator. Each flip−flop divides the frequency of the previous flip−flop by two, consequently this part will count up to 224 = 16,777,216. The count advances on the negative going edge of the clock. The outputs of the last seven−stages are available for added flexibility. Features All Stages are Resettable Reset Disables the RC Oscillator for Low Standby Power Drain RC and Crystal Oscillator Outputs Are Capable of Driving External Loads Test Mode to Reduce Test Time VDD′ and VSS′ Pins Brought Out on Crystal Oscillator Inverter to Allow the Connection of External Resistors for Low−Power Operation Supply Voltage Range = 3.0 Vdc to 18 Vdc Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load over the Rated Temperature Range Specifications: Product Attribute Symbol Attribute Value DC Supply Voltage Range VDD −0.5 to +18.0 V Input or Output Voltage Range (DC or Transient) Vin, Vout −0.5 to VDD +0.5 Input or Output Current (DC or Transient) per Pin Iin, Iout ±10mA Power Dissipation PD 500mW Ambient Temperature Range TA −55 to +125 °C Package/Case: PDIP-16 Mounting Style: Through Hole Product Category Multipliers / Dividers MC14521BCP Datasheet
