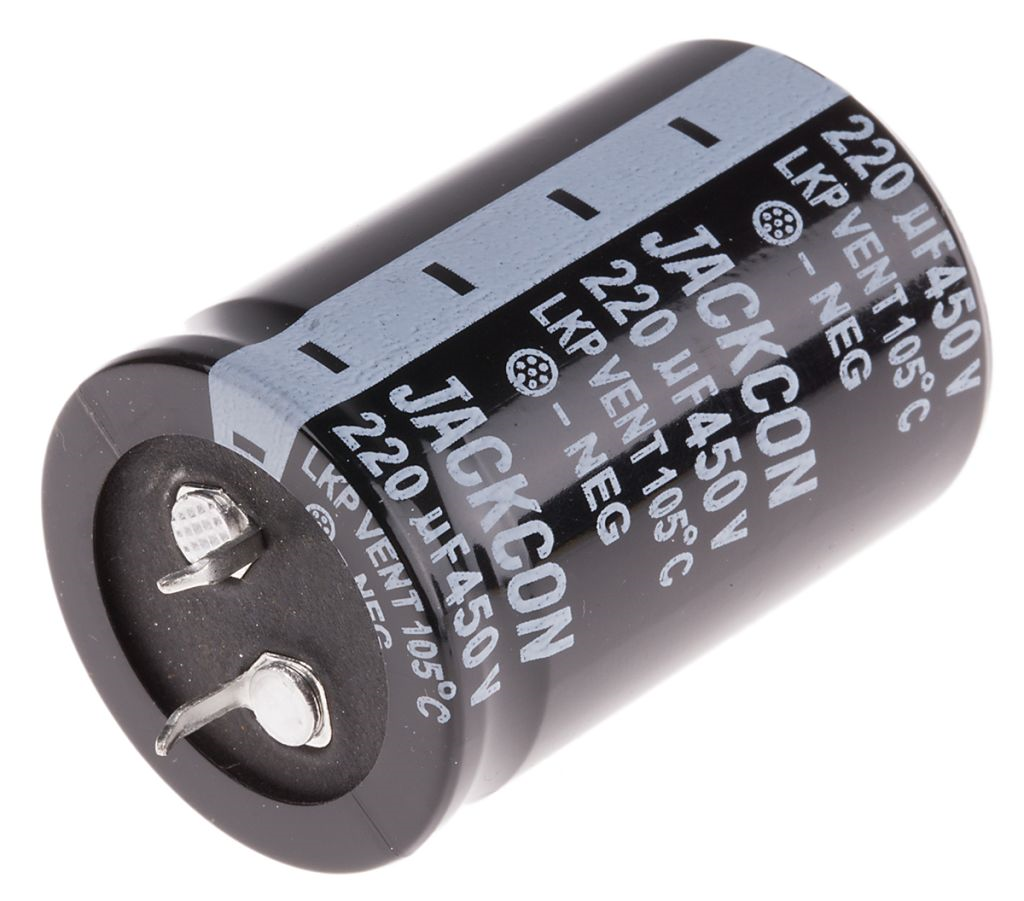

Electrolytic capacitor 220µF/450V

Description

Electrolytic capacitor 220µF/450V The 220µF 450V electrolytic capacitor is designed for high-voltage energy storage and filtering. It performs reliably in switch-mode power supplies, LED drivers, and motor control circuits. The aluminum electrolytic construction ensures long-term stability. It supports high ripple currents and withstands voltage surges. Polarity markings are clearly visible for safe installation. The through-hole design allows easy mounting on PCBs. Operating temperatures range from −40°C to +105°C. A pressure relief vent enhances safety in fault conditions. Its compact size saves board space without sacrificing performance. RoHS compliance ensures environmental responsibility. Use it where voltage, reliability, and endurance are critical. Parameter Value Capacitance 220 µF Rated Voltage 450 V DC Capacitance Tolerance ±20% Polarity Polarized Operating Temperature −40°C to +105°C ESR (Typical) 0.9 – 1.3 Ω (varies by manufacturer) Ripple Current (120 Hz) ~1.2 – 1.5 A RMS (typical) ‘ Lead Spacing 10 mm or 12.5 mm Case Size (Example) 22 mm (D) × 50 mm (H) or 25 × 50 mm Mounting Type Through-hole Shelf Life 2000 hours @ 105°C Compliance RoHS compliant
